The world's first electronic cutting machine with a built-in scanner now with Blade Sensor technology. Cut card, self-adhesive vinyl, felt, leather and foam with the new Auto Blade that automatically detects the thickness of your material. No PC required. Edit cut data on the 5 inch LCD touch screen display.
Reads SVG cutting files and PES embroidery files. Convert embroidery designs to cut data directly on the machine. Cuts up to 3mm. Includes accessories for drawing, cutting fabrics and making fabric appliques. Ready to cut, 1303 built-in designs, 17 built-in fonts. USB port for storing and importing files. Wireless network ready.
Features:
- Blade sensor technology - automatically detects thickness
- 1303 built-in designs, 17 built-in fonts
- Edit cut data on the 5 inch LCD touch screen display
- Reads SVG cutting files and PES embroidery files
- Wireless Network Ready - transfer cut data from the machine to CanvasWorkspace application to store and edit designs
- Standard Memory 1.5MB or 60 Pockets
- LCD Touch Screen 5inch Colour (800 x 480 pixels)
- Digital Scanner
- Colour Scanner
- Scanner Resolution (Optical) Up to 600 DPI for Scan to USB function, and 200 DPI for Direct Cut and Scan to Cut Data
- Scanning Area Scan Size: 296.7 mm x 603.6mm
- Built-in Designs 1,303
- Built-in Quilt Patterns 140
- Built-in Fonts 17
- Work Area 11.7inch x 11.7inch (29.7cm x 29.7cm)
- Standard Blade Max 0.8mm (May Vary) - Optional
- Deep Blade Max 1.5mm (May Vary) - Optional
- Blade Depth Adjustment Auto with Auto blade / Thin Fabric Auto blade
- Adjustable Holder Pressure Auto with Auto blade holder / Thin Fabric Auto blade holder
- Cutting Speed 9 Levels
- Direct Cut Frame Types (11)
- Enlargement Reduction (Designs can be Enlarged or Reduced)
- Interface 1 USB Host / 1 USB Function, Wireless
- Wireless Interface Yes
- Digital Media Via USB Host
Weight and Dimensions
- Dimensions 531(W)x 215(D)x 173(H)mm
- Weight 5.8Kg
Included Accessories
- Auto Blade and Holder
- Thin Fabric Auto Blade and Holder
- Standard Tack Adhesive Mat 12" x 12" (305mm x 305mm)

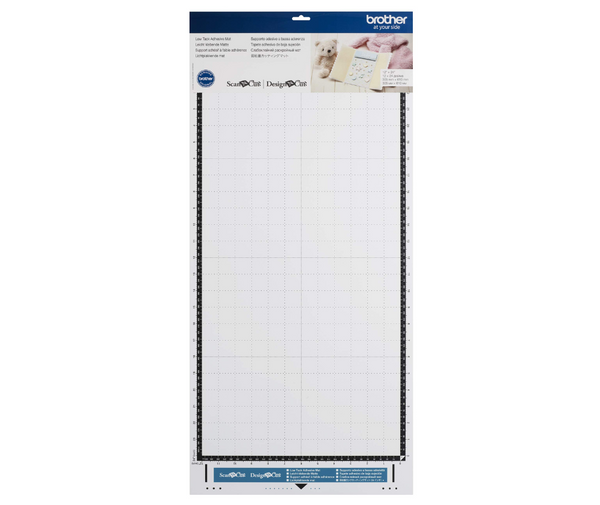

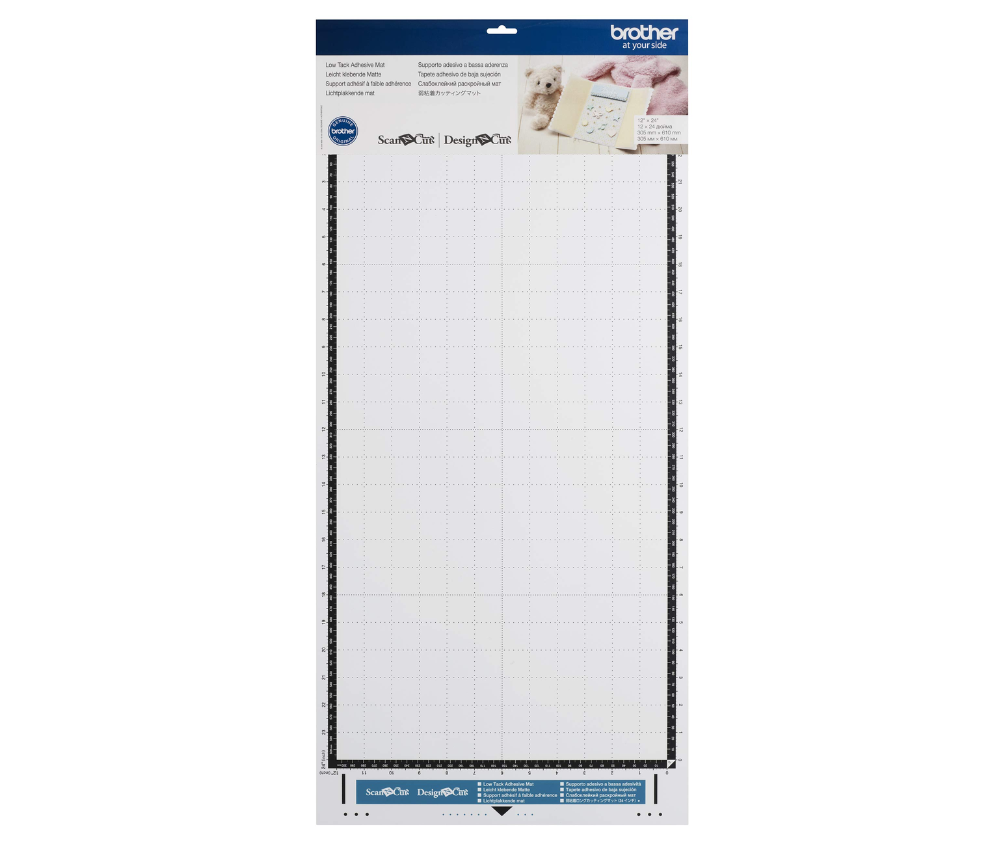

- Low Tack Adhesive Mat 12" x 12" (305mm x 305mm)
- 6 Colour Pen Set
- 2 Type Erasable Pen Set
- Pen Holder
- Touch Pen (Stylus)
- Spatula
- Accessory Bag
- 2 High Tack Adhesive Fabric Support Sheets 12" x 12" (305mm x 305mm)
- 2 Iron-On Fabric Applique Contact Sheets 12" x 15.9" (305mm x 406mm)
- 1 Sheet of Cardstock 12" x 12" (305mm x 305mm)
- Power Cord
- Getting Started Guide
....
