Janome HD Roller Foot
In stock
Our Price
$189.00
12 Months Gem Interest Free
Learn more

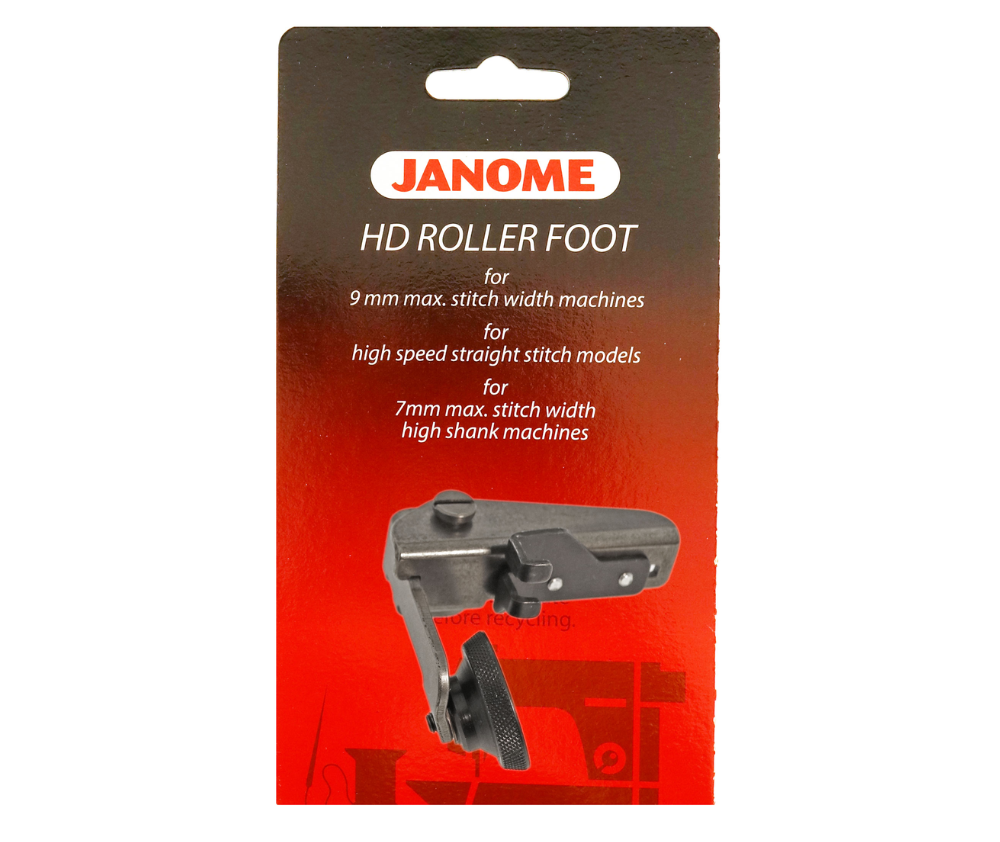

JANOME HD Roller Foot Cat C High Shank 7mm, Cat D 9mm Machines - 202418007
For Category C & D, 1600p & HD9 (Not MC7700QCP)
The Janome HD roller foot is for sewing curves, topstitching and piping with a large pipe. This foot gives you a better view and allows you to manipulate the fabric easily and accurately.
This innovative new foot can smoothly control materials such as leather and vinyl which are prone to catch in the feed dogs. When using this foot, the base of the needle is clearly visible, making your work easier.
Smooth Feeding of Fabric - Because the roller holds the material while rotating, materials such as leather and vinyl are fed smoothly. Also makes sewing curves a breeze.
Great for Piping - Thick piping cord can also be sewn with the needle directly beside the cord. If a Zig-Zag or Satin Stitch foot were used, the side of foot would be against the cord instead. Can be used with piping cord which is 17mm or less in diameter.
Adjust roller position relative to needle position - For best sewing results, position the roller and needle close to each other. Combined with the roller holding down the fabric, this has the effect of keeping the stitch length as uniform as possible.
With sharp curves, setting a short stitch length is also effective. Test sewing and adjusting thread tension and stitch length is recommended.
Roller part is retractable - The roller can be retracted to the left side to make a space around the needle and allow for easier threading. The roller part can be moved while pushing the screw at the top of the foot.
Handling of delicate materials - When working with delicate materials such as leather, enamel and vinyl, you can place a thin layer of paper between the roller and the feed dogs in order to prevent it leaving marks on the material. If the pressure is too strong, scratches or damage to the roller may also occur, so adjusting foot pressure to recommended values is advised. For recommended foot pressure for each sewing machine, please refer to the included Roller foot instructions.
Compatible with High Speed Machines, and High Shank 9mm and 7mm stitch width models.
Janome HD9 Professional
Janome 1600P-QC
Janome Horizon Memory Craft 9450QCP
Janome Atelier 9
Janome Atelier 7
Janome Horizon Memory Craft 15000
Janome Horizon Memory Craft 15000 V2
Janome Memory Craft 6650
Janome Memory Craft 6700P
Janome Memory Craft 9850
Janome M7 Continental
